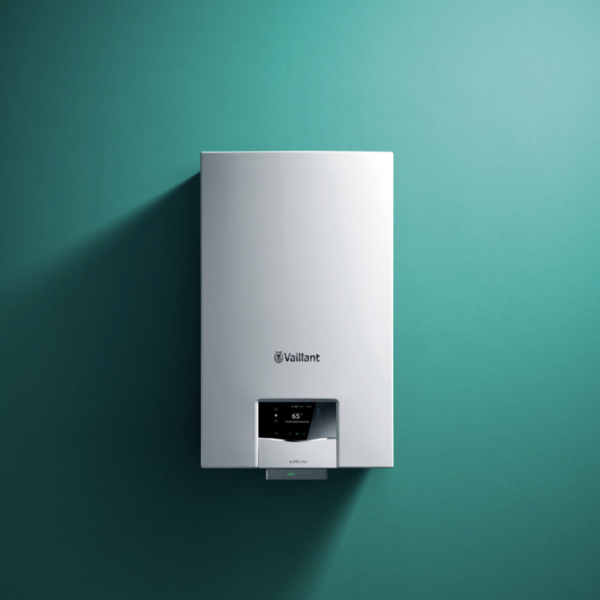

Name: Vaillant ecoTEC Plus 630 System Boiler inc Horizontal Flue
SKU: 0010036013
Availability: InStock

Description

The Vaillant ecoTEC plus 630 system boiler is a highly efficient condensing gas boiler with a seasonal space heating efficiency of 94% and ErP A-Rating.

The Vaillant ecoTEC Plus 630 gas system boiler is smart home ready to provide precise temperature control and energy efficiency during use.

Designed with ioniDETECT technology, this gas boiler provides intelligent gas combustion monitoring for enhanced system efficiency, ensuring durability by reaching a wider modulation range of up to 1:9.

Specification

Technical data	Unit of measure	ecoTEC plus 610 – 10kW	ecoTEC plus 615 – 15kW	ecoTEC plus 620 – 20kW	ecoTEC plus 625 – 25kW	ecoTEC plus 630 – 30kW	ecoTEC plus 635- 35kW
General
Boiler type		System	System	System	System	System	System
LPG convertible		Yes – adaptive	Yes – adaptive	Yes – adaptive	Yes – adaptive	Yes – adaptive	No
Article number		0010036009	0010036010	0010036011	0010036012	0010036013	0010036014
PCDB number		TBC	TBC	TBC	TBC	TBC	TBC
Dimensions
Boiler dimensions (HxWxD)	mm	720 x 440 x 352	720 x 440 x 352	720 x 440 x 352	720 x 440 x 352	720 x 440 x 352	720 x 440 x 386
Side clearance	mm	5	5	5	5	5	5
Top clearance	mm	165	165	165	165	165	165
Top clearance if using rear flue	mm	N/A	N/A	N/A	N/A	N/A	N/A
Bottom clearance	mm	180	180	180	180	180	180
Front clearance ~	mm	500	500	500	500	500	500
~ Can be reduced to 5mm if fitted behind removable door / panel
Heating
Nominal heat output range at 50/30˚C (Condensing mode)	kW	2.8 – 10.6	2.8 – 15.9	2.8 – 21.2	3.9 – 26.5	4.2 – 32.2	5.0 – 37.7
Nominal heat output range at 80/60˚C (Non condensing mode)	kW	2.5 – 9.9	2.5 – 14.8	2.5 – 19.8	3.5 – 24.9	3.7 – 29.9	4.5 – 34.9
Flow temperature range (Factory setting – 75°C)	˚C	30 – 85	30 – 85	30 – 85	30 – 85	30 – 85	30 – 85
Modulation (max/min)	1 : X	1:8	1:8	1:9	1:8	1:9	1:9
Domestic Hot Water
Maximum heat output for water generation	kW	19.6	19.6	23.6	29.6	34.3	39.4
Mechanical
Gas inlet connection (pipe size)	mm	15	15	15	15	15	15
Heating flow and return connections (pipe size)	mm	22	22	22	22	22	22
Heat exchanger material	Stainless/ Aluminium	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
Filling loop supplied	YES/NO	No	No	No	No	No	No
Boiler lift weight (dry boiler)	kg	34	34	34	36	36	40.5
Spacer frame available	YES/NO	Yes	Yes	Yes	Yes	Yes	Yes
Performance
NOx (En 15502-2-1)	mg/kWh	36.0	36.0	33.0	27.0	28.0	27.0
ErP efficiency	%	92	93	93	94	94	94
ErP decibel rating (sound power)	dB(A)	37	42	35	46	48	52
ErP efficiency Heating	A+++ to D / A+ to F	A	A	A	A	A	A
PCDB annual efficiency		TBC	TBC	TBC	TBC	TBC	TBC
Fluing options
Maximum horizontal flue length 60/100	m	16	16	16	8	8	8
Maximum vertical flue length 60/100	m	12	12	12	8	8	8
Maximum horizontal flue length 80/125	m	28	28	28	28	28	28
Maximum vertical flue length 80/125	m	30	30	30	30	30	30
Rear flue options	YES/NO	No	No	No	No	No	No
Permissible flue classifications		C13, C33, C43, C53	C13, C33, C43, C53	C13, C33, C43, C53	C13, C33, C43, C53	C13, C33, C43, C53	C13, C33, C43, C53

Watts	30kw
Boiler Type	System
Flue Options	Boiler Only – NO Flue, Vaillant STD Horizontal Flue Kit 100mm (303933), Vaillant Vertical Flue Kit (20223472)
